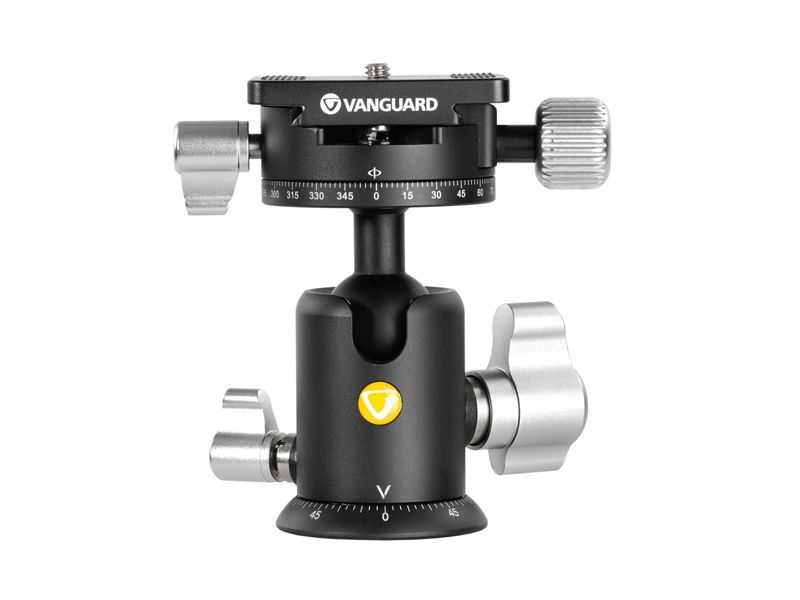

Vanguard VEO BH-110S Arca Compatible Dual Axis Ball Head

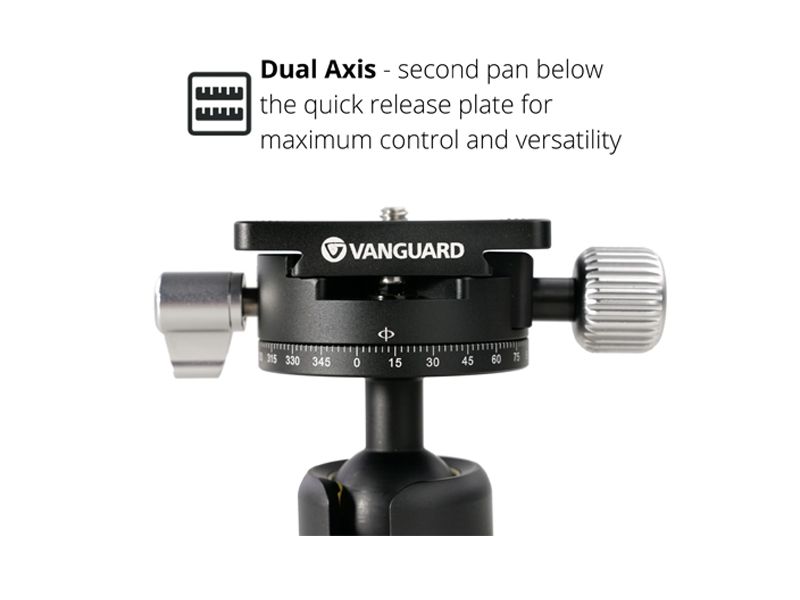

The VEO BH-110S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.

One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.

One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.

Alternatively, the dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup.

Despite weighing in at just 430g with a 28mm ball, this head has a maximum load capacity of 10kg/22lbs and is machined from aircraft grade aluminium using the latest CNC technology. This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.

The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.

With a 50mm diameter base it is more suitable for a smaller, travel sized tripod with a 1/4" thread (but can be used with any tripod with a 3/8" thread by removing the adaptor provided).

Specification;

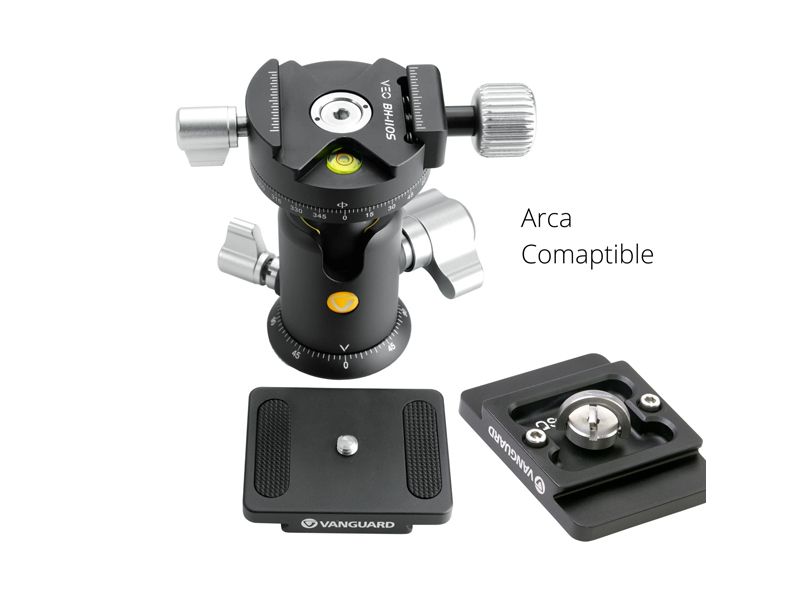

Arca Swiss Compatible Yes
Quick Shoe QS-62 V3
Maximum Load Capacity 10kg
Separate Pan Lock Yes (two)
Friction Control No
Swivel 360°
Spirit Bubble Levels 1
Width 105mm
Height 105mm
Base Diameter 50mm
Head Attachment Thread 1/4" and 3/8"
Weight 427g
Accessories Quick Shoe and 1/4" to 3/8" adaptor thread included

Warranty 2 Years

Extended Warranty 10 Years if you Register purchase at https://www.vanguardworld.co.uk/pages/warranty
