Celestron StarSense AutoAlign

CLICK TO ENLARGE (3)

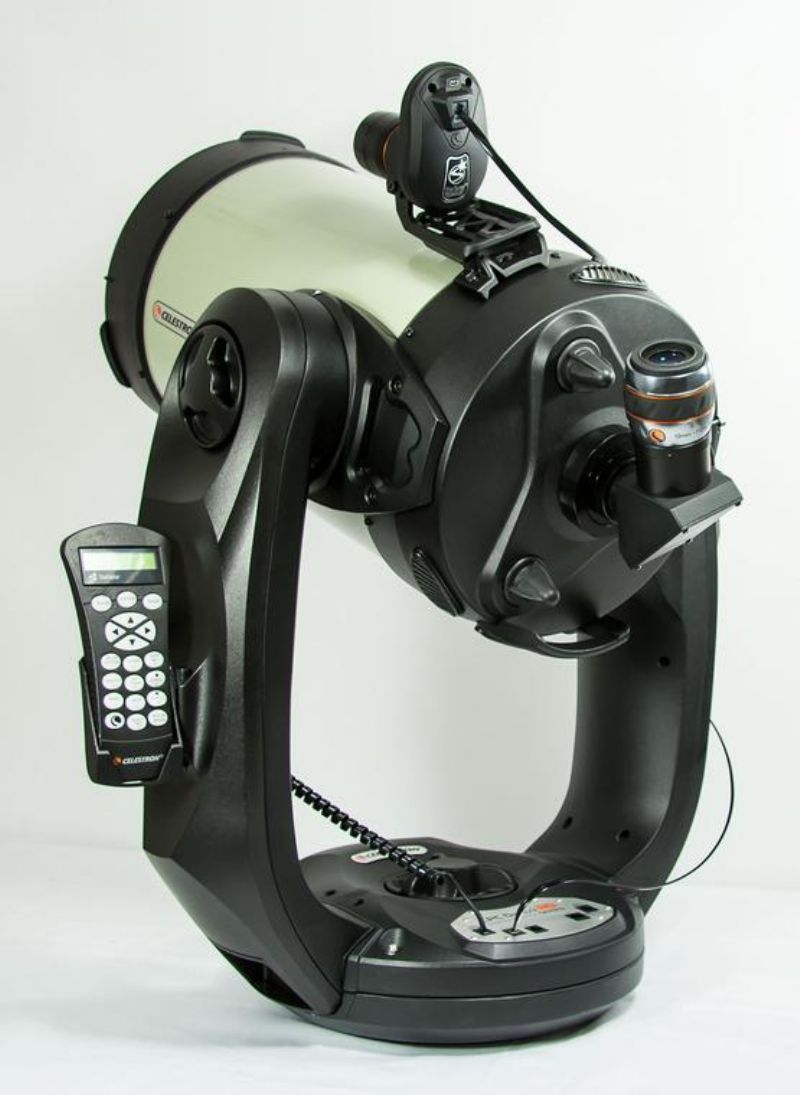

Become an instant astronomer, even if you''ve never used a telescope before, with the one-of-a-kind StarSense AutoAlign. Just set up the accessory, push the Align button on the hand control, and StarSense begins capturing and comparing images of the night sky against its internal database. In about three minutes, it's gathered enough information to triangulate its position and align itself. Then, press the Sky Tour button: StarSense will automatically slew to all the best stars, planets, galaxies, and more currently visible in the night sky.

How it Works:

The self-alignment technology behind our award-winning SkyProdigy series is now available for most of Celestron's current computerized telescopes and compatible with many older models as well. (See compatibility list below.)

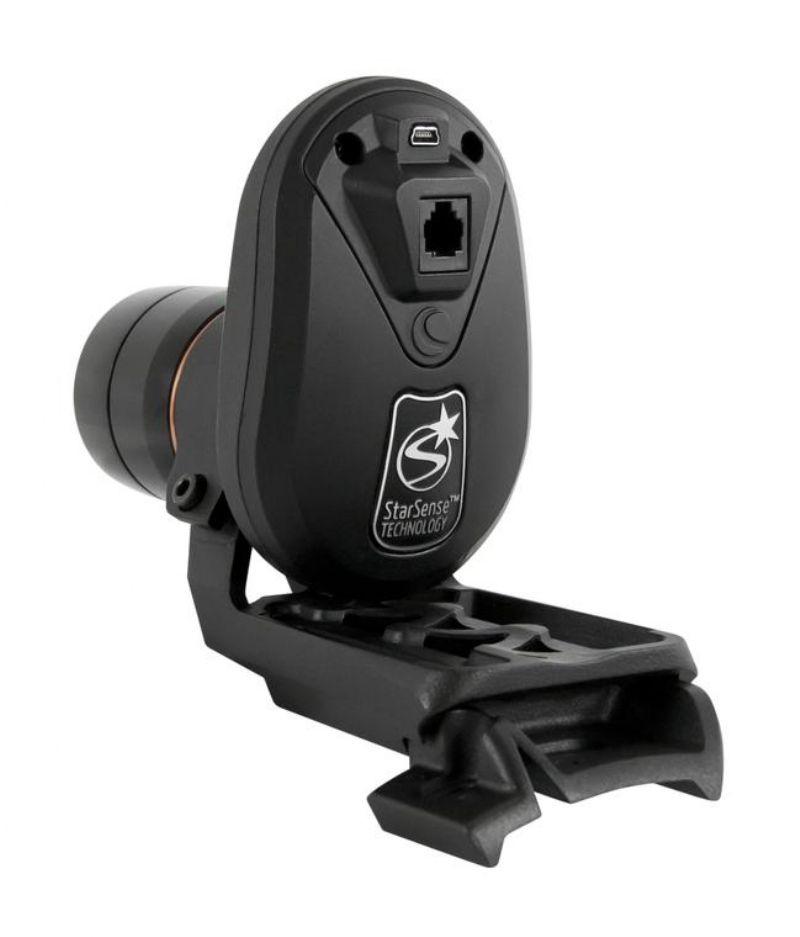

A small digital camera takes the place of your finderscope and attaches using one of two provided mounting brackets. The included StarSense hand control, with a database of over 40,000 celestial objects, takes the place of your NexStar hand control. The camera automatically captures a series of images of the sky. StarSense identifies the stars in the images, matching them to its database. Once a positive match is confirmed, StarSense calculates the coordinates of the center of the captured image, thereby determining exactly where the telescope is pointed.

Before StarSense, using a computerized telescope required a lengthy alignment process of finding and centering at least two bright stars in the telescope''s eyepiece. But StarSense automatically aligns itself with minimal user input. Just enter your time, date, and location and let StarSense do the rest!

Advanced Mount Modeling

Even the most advanced telescope users will love using StarSense AutoAlign. This affordable accessory replaces the expensive software usually used for advanced mount modeling.

With built-in mount modeling, you'll get superior pointing accuracy from horizon to horizon. When your alignment needs to be perfect, add up to 10 additional calibration stars to achieve a new level of accuracy, great for locating objects in the camera''s field of view for astroimaging.

StarSense camera field of view: 6.88º x 5.16º.

StarSense Compatibility List:
Any mount with 5.x or greater is compatible with the software.

Imaging Sensor: Aptina MT9M034 1 .2 Megapixel CMOS
Pixel Array: 1280 x 960
Pixel Size: 3 .75µm x 3 .75µm
Objective Lens Diameter: 2-Element 20mm (0.78")
Objective Lens Focal Length: 40mm (1.57")
Objective Lens Focal Ratio/F-stop: f/2
Control Board: 32-bit processor with embedded Linux Operating System
USB Port: USB 2 .0
Auxiliary Port: Connects to Celestron telescopes

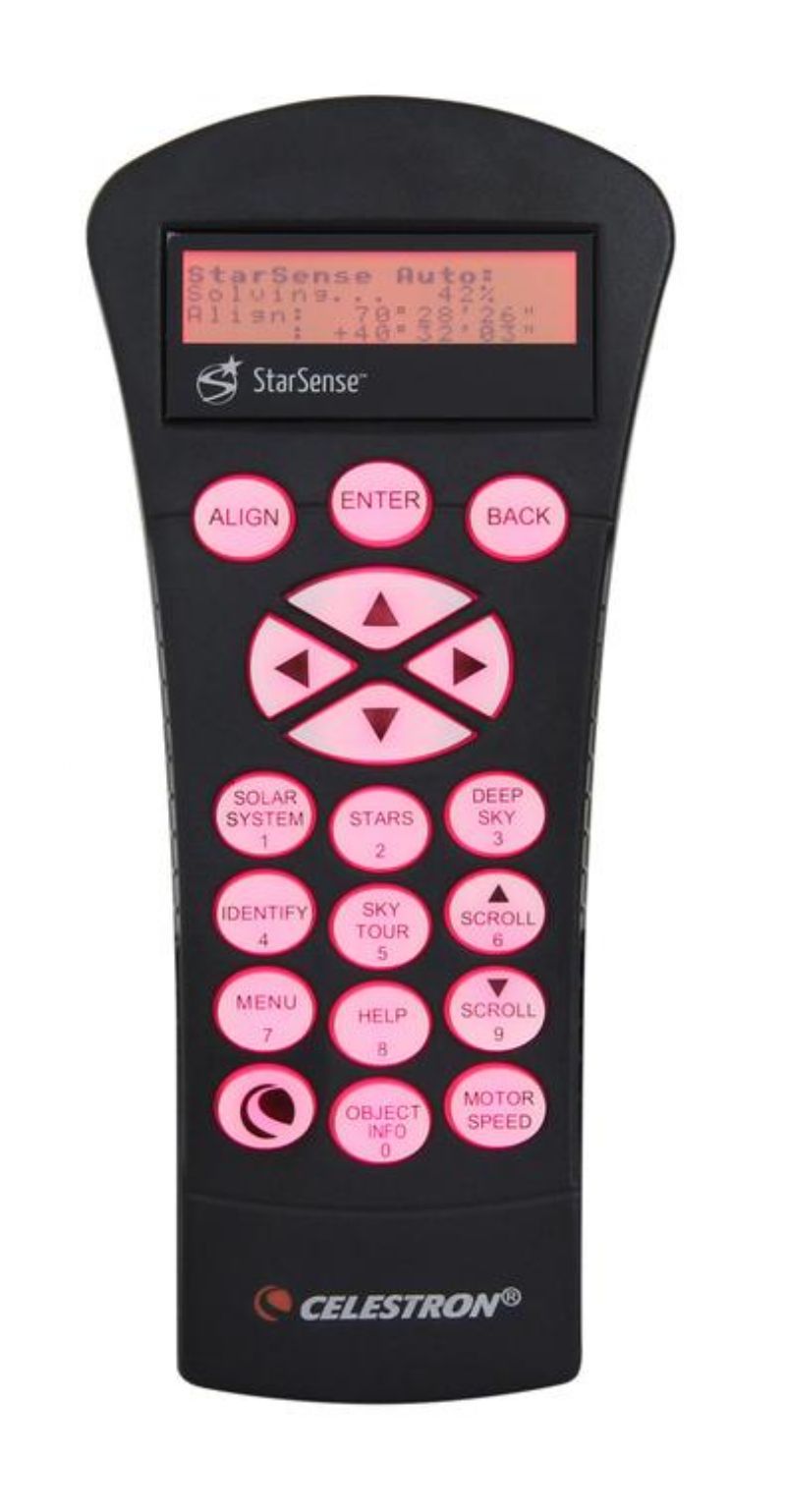

HAND CONTROLLER INFORMATION:
Object Database: 45,178
LCD: Red backlit 4 Line LCD
CPU: STMicro ARM 32-bit Cortex™-M3 CPU
Software and Firmware: Fully upgradable
RS-232 Port: PC connectable for software/firmware upgrades

Starsense Auto-Align, StarSense Hand Controller
