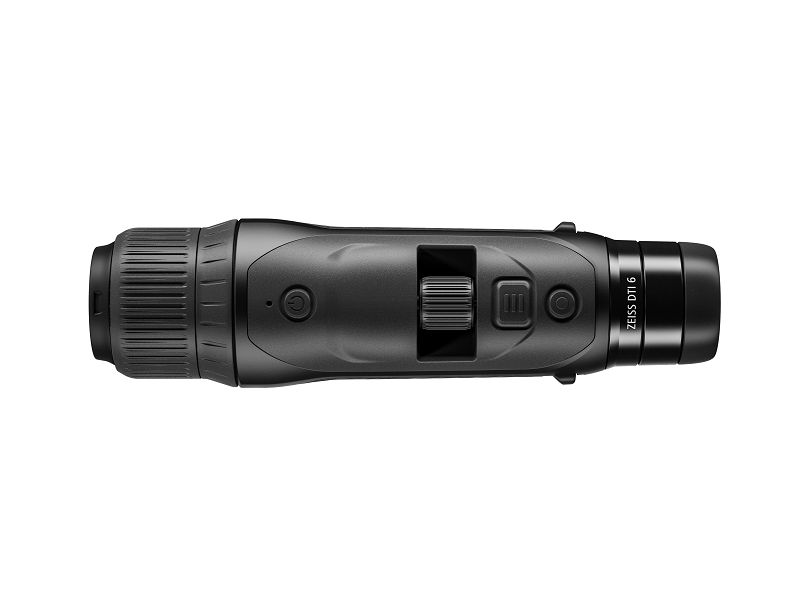

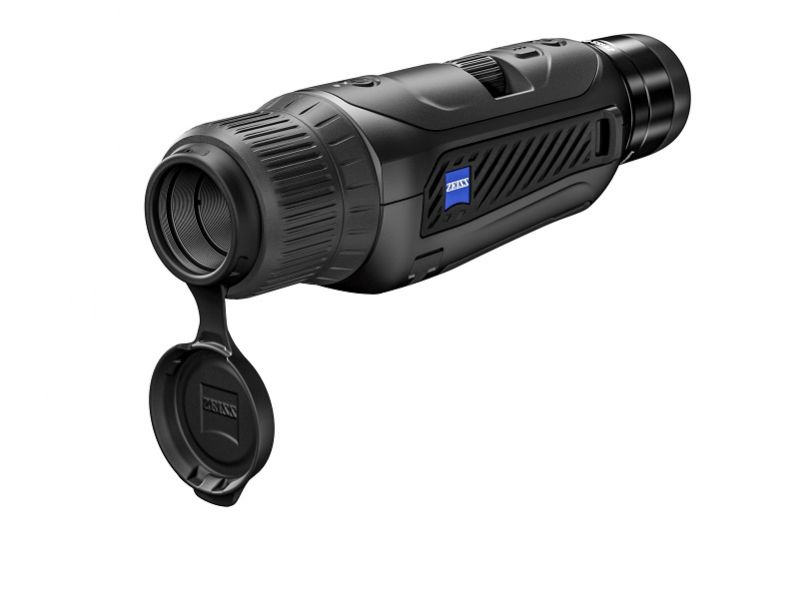

Zeiss DTI 6/20 Thermal monocular

CLICK TO ENLARGE (2)

ZEISS' innovative ZEISS Smart Image Processing (ZSIP Pro) algorithm delivers a sharp, high-contrast thermal image via the 640 × 480 sensor with 12 micron pixel pitch and the 1024 × 768 HD AMOLED display. ZSIP ensures that you can perfectly identify key details under difficult conditions and with low thermal contrast.

The battery supports 6.5 hours of continuous use and can be quickly and easily replaced on the go. Identify individual details even more reliably in order to more quickly and reliably identify your target - for maximum hunting success.
The ZEISS DTI 6/20 is the perfect thermal imaging device for forested areas. With an impressive field of view of 38 m/100 m, it delivers a perfect overview at short distances, making precise observation, reliable identification, and thus the greatest possible viewing success possible.

Performance
Focal length

20 mm

Aperture

f/1.0

Field of view at 100 m (yds)

38 m (125 ft)

Objective viewing angle

22° x 16°

Range

1000 m (1093 yd)

Sensor resolution

640 x 480

Sensor pixel pitch

12 µm

Display resolution

1024 x 768

Display frame rate

50 Hz

Display type

HD AMOLED

Optical magnification

1,5

Maximum digital zoom

10x

Zoom steps

0.1x - 1.0x

Vertical adjustment range at 100 m

-

Lateral adjustment range at 100 m

-

Adjustment per click at 100 m

-

Features
Battery type

Li-Ion

Battery run time

6,5 h

Internal memory

16 GB

WLAN

2.4 Ghz

Bluetooth

+

Livestream function (Video & Photo)

+

Physical
Operating temperature

- 20°C | + 50°C (- 1°F | + 122°F)

Length x Width x Height

230 x 62 x 68 mm (9.1 x 2.4 x 2.7")

Weight

690 g (1.52 lbs)
